Link Circular Guide Rail Circulating Conveyor Line Automatic Assembly Line System Curved Circular Motion

Integrated Conveying and Indexing for Automation Cells

The KS Series is a circulating solution that combines transport and accurate stop positions in one platform, reducing the need for external stoppers or secondary locating fixtures. This precision link conveyor is engineered for manufacturing engineers, system integrators, and maintenance teams who need deterministic positioning for assembly, inspection, or transfer lines. By unifying movement and indexing, indexing conveyor systems can be simplified: fewer stations are required, layouts become shorter, and changeovers are easier to standardize. The rigid conveyor link architecture supports repeatable pallet flow and controlled dwell times, enabling consistent takt control and predictable robot handoff. For procurement, the value is a clear spec-driven platform that fits into modular line concepts while lowering integration complexity.

Measured Motion Capability and Repeatability

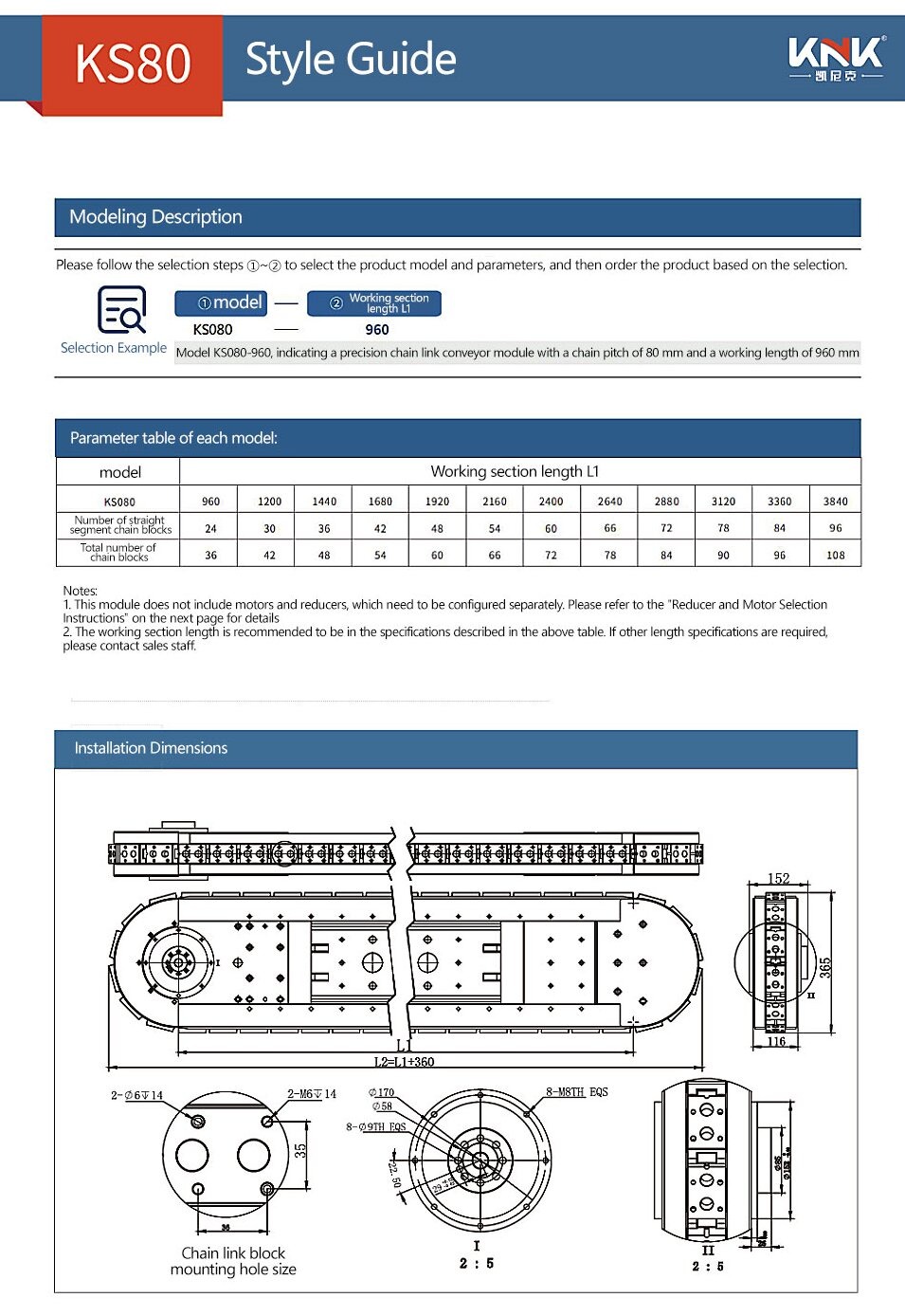

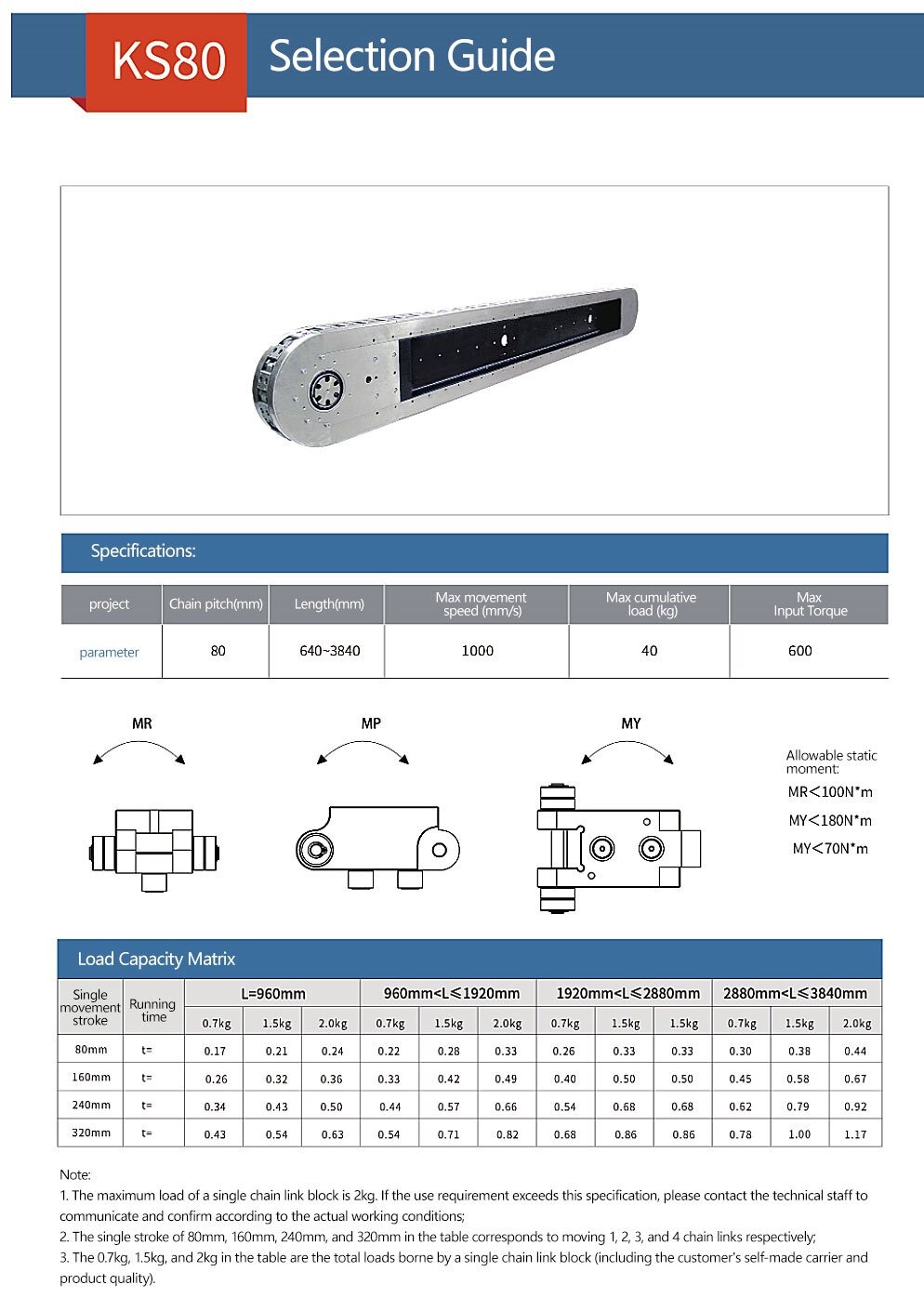

Built for precision retention under continuous duty, the KS Series provides repeat positioning accuracy up to 0.05 mm, allowing direct station handoff without secondary positioning in many setups. This precision link structure supports a maximum operating speed of 1000 mm/s and a cumulative load capacity up to 40 kg, balancing throughput and rigidity for multi-station circulation. The chain-link design delivers stable tracking and consistent engagement, making indexing conveyors suitable for applications where repeatability and dwell stability affect downstream yields. High-strength materials and a robust mechanical layout support long service life with minimal performance drift, while a modular configuration approach accelerates parameter selection and mechanical design finalization during project delivery.

Production Value Across High-Accuracy Processes

In practical production lines, the KS Series serves as the motion backbone for precision assembly, automated inspection, and sorting/feeding processes where each part must arrive at a known coordinate and timing window. As a link conveyor, it supports circulating workflows that require repeated stops for scanning, fastening, or measurement while maintaining synchronization with vision systems and robots. For tight-tolerance manufacturing, the precision link conveyor reduces scrap risk caused by misalignment and supports stable quality metrics over long runs. The standardized conveyor link interface also enables straightforward integration of pallets, nests, and fixtures, helping teams scale from pilot cells to multi-station lines with consistent performance assumptions and measurable throughput planning.

Modular Mechanical Architecture for Predictable Integration

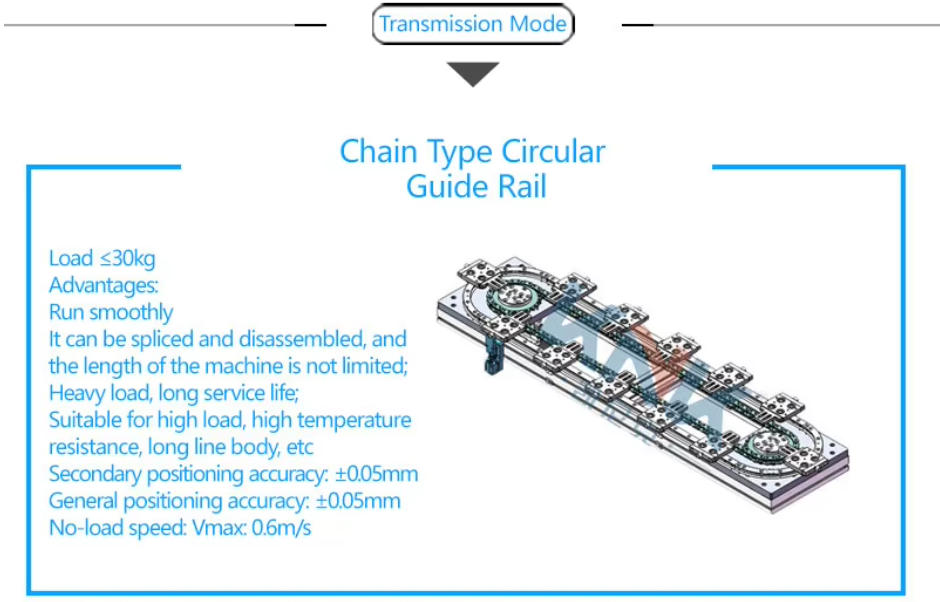

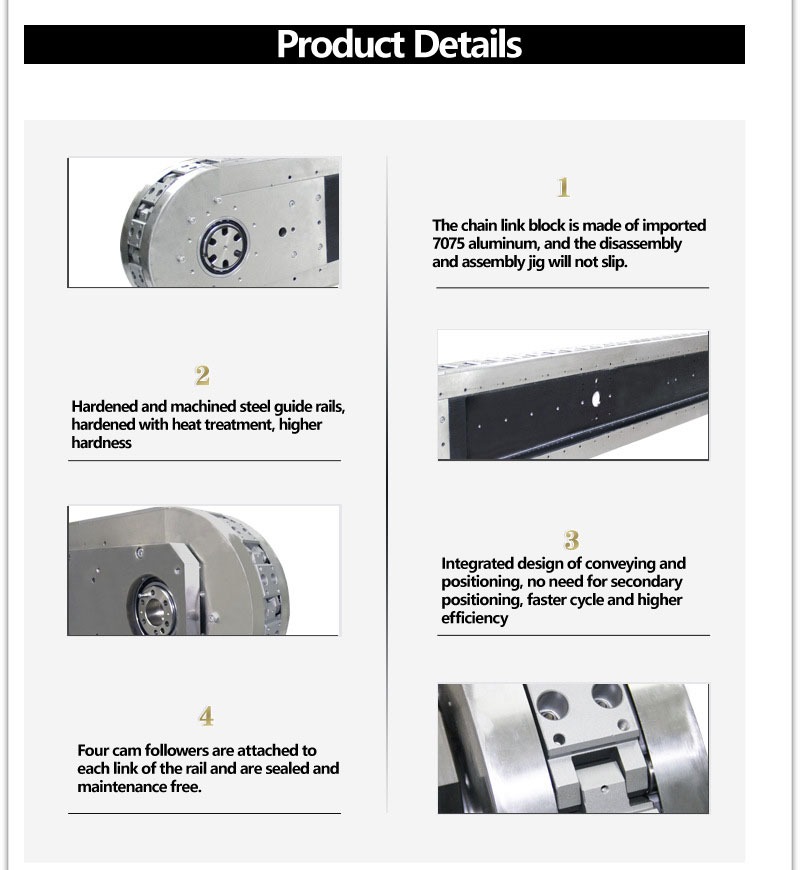

The KS Series is designed as an integrated platform rather than a collection of add-on positioning mechanisms, which simplifies system layout and reduces the number of mechanical interfaces to validate. Its circulating conveyor link construction provides high rigidity for repeatable stop behavior and stable fixture support. With a modular approach, indexing conveyor systems can be configured for required stroke, station spacing, and process sequencing without redesigning the full transport concept, improving engineering efficiency during line buildout. The precision link design supports consistent engagement and controlled dwell, enabling repeatable station geometry across multiple machines and easing documentation, spare parts planning, and maintenance standardization in multi-line deployments.

Operational Stability, Lower Downtime, and Better Process Control

From a user-value standpoint, the primary benefit is repeatability that directly supports stable yields: 0.05 mm repeat positioning accuracy helps reduce rework and improves downstream automation success rates. The KS Series precision link conveyor supports up to 1000 mm/s for throughput-driven lines while maintaining controlled indexing behavior, and its 40 kg cumulative load capacity accommodates fixtures and part carriers without compromising rigidity. Maintenance-free operation targets reduced unplanned stops and lower lifecycle service effort versus designs requiring frequent adjustment. As a link conveyor used in synchronized cells, it improves takt predictability and reduces tuning time when coordinating robots, sensors, and inspection equipment during commissioning and subsequent process upgrades.

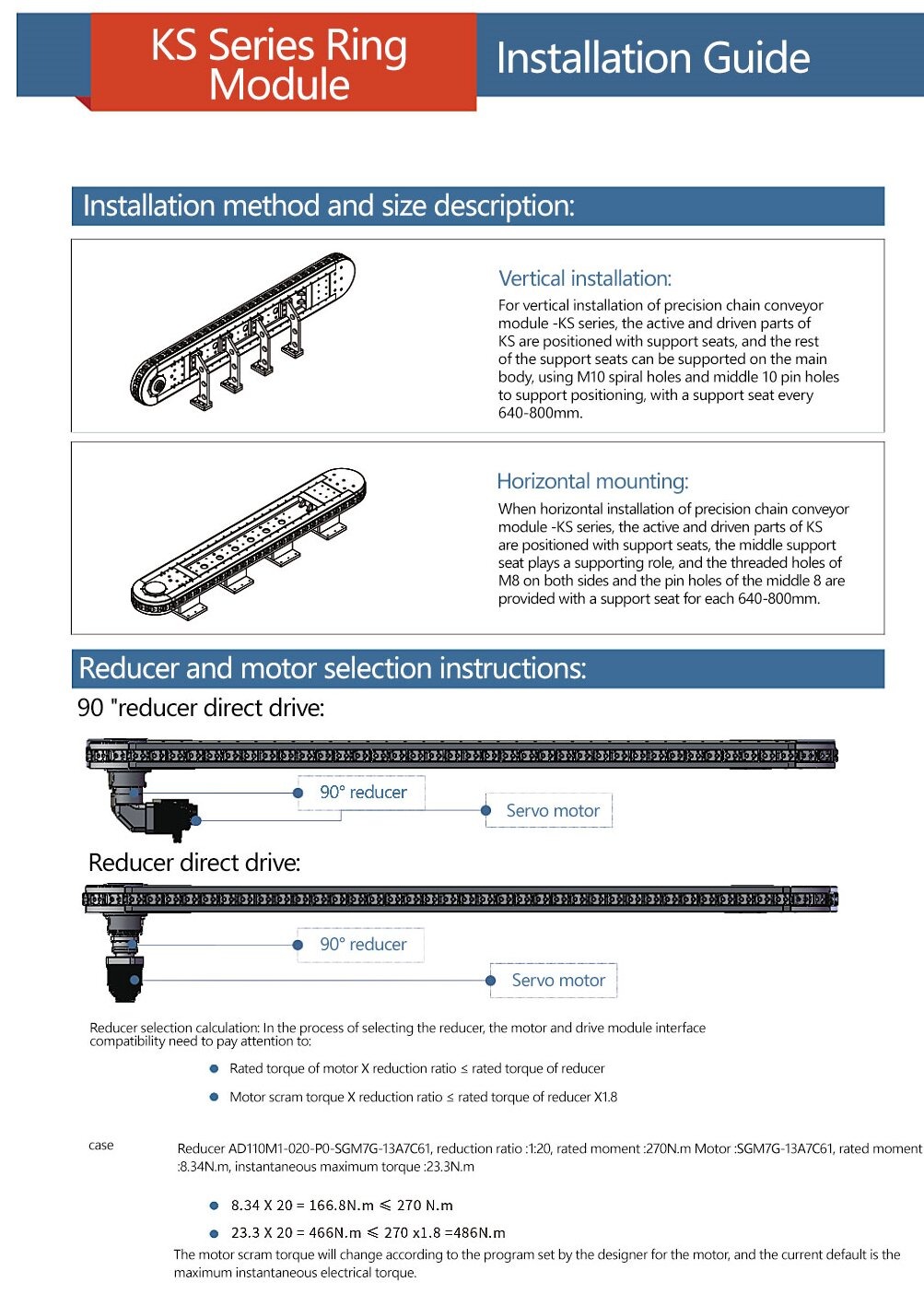

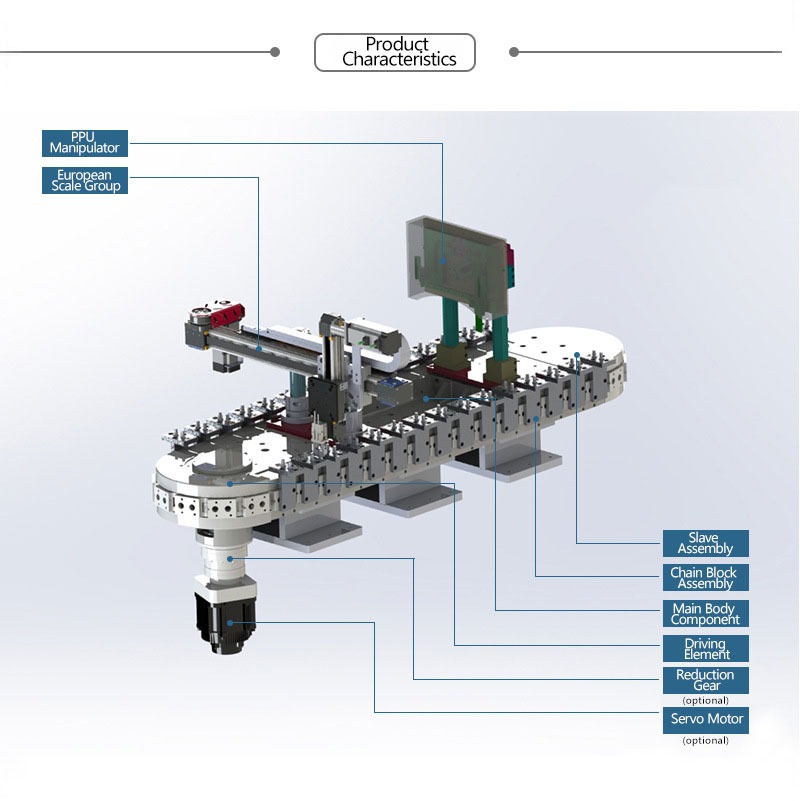

Precision Assembly Line with Robot Handoff and Fastening

In a precision assembly environment—such as electromechanical modules or small appliance subassemblies—the KS Series is deployed to circulate pallets through multiple fastening and verification stations. The indexing conveyors function is critical: each pallet must stop at a repeatable coordinate to meet torque tool alignment and robot pick/place repeatability requirements. Using a precision link conveyor with 0.05 mm repeat positioning accuracy can reduce reliance on secondary locators and shorten station cycle time. Integration typically includes PLC control for index commands, presence sensing at stations, and interlocks with tightening controllers. The rigid precision link structure supports stable dwell under tool reaction forces, improving process capability and reducing quality variation across long production runs.Automated Inspection and Traceable Scanning on Circulating Lines

In automated inspection lines for dimensional checks or code reading, parts must be presented with stable position and timing to cameras, scanners, and measurement probes. The KS Series acts as a link conveyor that transports carriers through scan points while delivering consistent stop behavior for exposure timing and measurement repeatability. In these indexing conveyor systems, the 1000 mm/s speed supports high throughput between stations, while controlled indexing enables repeatable image acquisition and reduced false rejects. Typical workflow integration includes encoder/trigger coordination, vision system handshakes, and data logging to MES/quality databases. The robust conveyor link design and maintenance-free concept help sustain uptime in continuous operation where inspection availability directly affects line output and compliance reporting.

FAQ

1.Why are you choose us? KNK is a Hi-tech enterprise specializing in linear modules, linear rails, industrial manipulators, etc., integrating R&D,production and sales, "Specialized and New Enterprise"

2.What can you purchase from us? A one-stop procurement platform for automation products, including linear modules, guide rails, circular line modules, linear motors, PPU robotic arms, electric push cylinders, etc.

3.In Which Industries Can our Product be Applied? All industries of industrial automation equipment, such as 3D printing, food packaging, dispensing machines, conveying and feeding, laser equipment, industrial automation, vending machines, etc.

4.Customization Process? Consult customer service, determine parameters, communicate quotations, refine communication, confirm drawing plans, confirm production, product testing, shipping acceptance, installation guidance, after-sales service.

5.How About the Price? Because most products are customized, the final quotation is determined based on the complete description, size, material,quantity of the product you need.
