As industrial automation continues to move toward higher efficiency and greater flexibility, many machines require controlled linear movement for pushing, pulling, lifting, positioning, clamping, and adjustment.
An Electric Linear Cylinder provides a compact solution for these applications. Compared with pneumatic cylinders, an electric cylinder can offer programmable movement, adjustable speed, controlled positioning, and easier integration with modern motion-control systems.
For OEM machine builders and automation integrators, the most important consideration is not simply selecting a standard electric cylinder. Different machines may require different stroke lengths, loads, speeds, thrust forces, motors, mounting configurations, and control methods.
A custom electric linear cylinder can therefore be designed around the actual requirements of the machine.

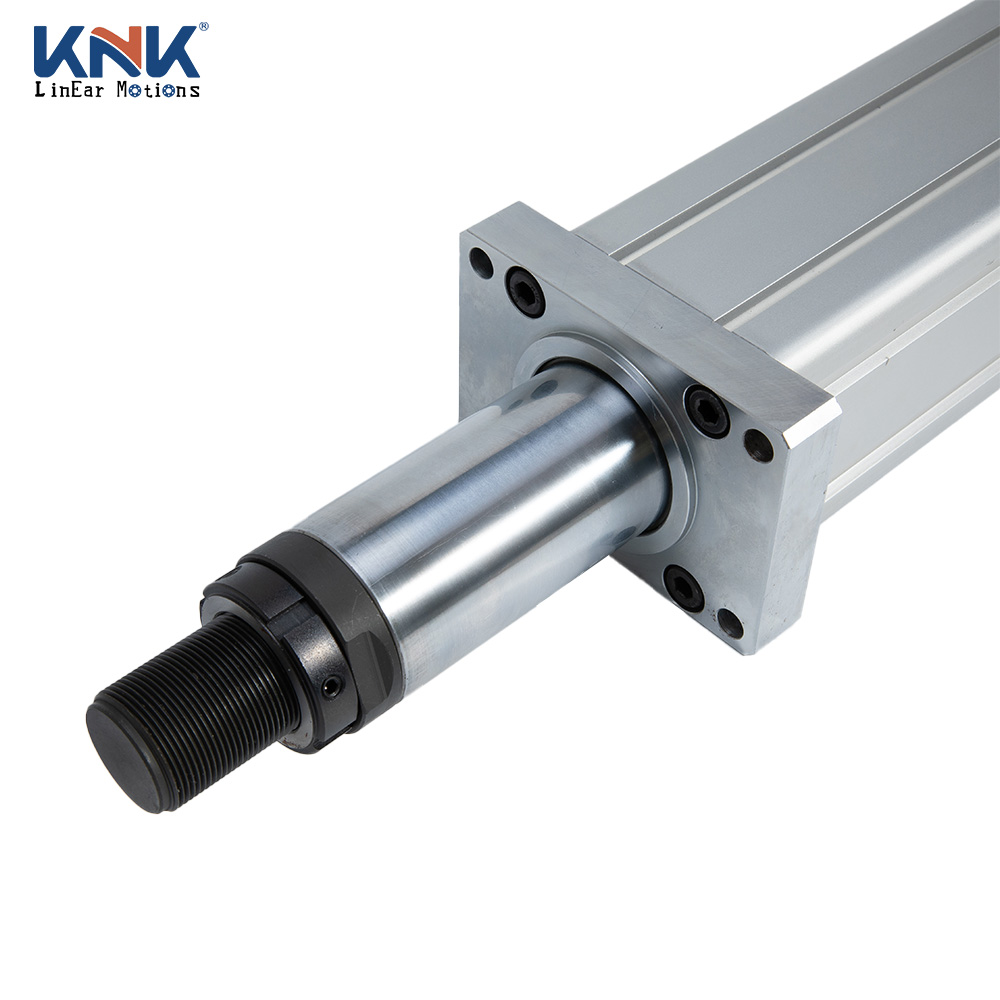

An electric linear cylinder is an electromechanical actuator that converts rotary motor motion into controlled linear movement.
A typical system may include:
The basic operating principle is:
Motor Rotation → Screw Drive → Linear Movement
Depending on the design, electric linear cylinders can provide controlled extension and retraction for automated equipment.
They can be used as an alternative to pneumatic cylinders in applications where programmable motion and positioning are important.
One of the main advantages of an electric cylinder is the ability to control its movement.
Depending on the motor and controller configuration, engineers can control parameters such as:
This makes electric cylinders suitable for machines that require more than simple extend-and-retract movement.
Different machines require different travel distances.
A standard cylinder may not match the required stroke, particularly when the machine has limited installation space.
A custom electric linear cylinder can be configured according to the required travel.
Typical considerations include:
The stroke should be selected together with the required load and operating cycle.
Electric cylinders can be selected according to the required linear force.
Applications may require the cylinder to:
The required force depends on the payload, friction, acceleration, mounting orientation, and mechanical structure.
For vertical applications, for example, the actuator must also account for the gravitational load.
Electric linear cylinders can provide controlled linear speed.
This can be useful when a machine requires different speeds during different stages of a movement.
For example:
Fast Approach → Slow Positioning → Hold → Fast Return
This type of motion profile can be programmed according to the application.
Position control is another important feature for automated equipment.
Depending on the selected motor and feedback system, the electric cylinder can be integrated with:
This allows the actuator to become part of a larger automated motion system.
An electric linear cylinder integrates the drive mechanism and linear movement into a relatively compact assembly.
This can simplify machine design where installation space is limited.
It can be mounted in different orientations depending on the application, including:
The mounting structure should be designed according to the actual load and force direction.
A common question for automation engineers is whether to use an electric cylinder or pneumatic cylinder.
| Feature | Electric Linear Cylinder | Pneumatic Cylinder |
|---|---|---|
| Motion Control | Programmable | Generally simpler |
| Position Control | Excellent | Requires additional components |
| Speed Control | Programmable | Possible with pneumatic control |
| Force Control | Controllable through system | Pressure dependent |
| Multiple Positions | Easy to configure | More complex |
| Air Supply | Not required | Required |
| Automation Integration | Excellent | Excellent |
| Energy Use | Application dependent | Requires compressed air system |
| Typical Application | Precision motion, positioning | Fast repetitive actuation |
The right choice depends on the machine's motion requirements rather than one technology being universally better.
Electric cylinders and linear modules both provide linear motion, but they are designed for different mechanical applications.
An electric cylinder generally provides rod-type linear movement, making it suitable for pushing, pulling, lifting, and positioning.
A linear module typically uses a carriage moving along a guide rail and is more suitable for applications requiring a longer guided travel path.
Suitable for:
Suitable for:
For OEM equipment, the choice should be based on load direction, stroke, speed, accuracy, installation space, and machine architecture.
Electric linear cylinders can be used across many industrial automation applications.
An electric cylinder can provide controlled movement for:
For example, a cylinder can move a component into a predefined assembly position and then return to its original position.
Electric cylinders can be integrated into pick-and-place machines for controlled linear movement.
They can drive:
For applications requiring high-speed horizontal travel, an electric cylinder may be combined with a belt driven linear module or another linear motion axis.
Electric linear cylinders can be used for controlled vertical movement.
Examples include:
Vertical applications require careful consideration of payload, stroke, acceleration, holding requirements, and safety.
An electric cylinder can provide controlled linear force for:
Compared with a simple pneumatic actuator, an electric system can provide more flexible control over the movement profile.
Electric cylinders can move products or mechanical fixtures between predefined positions.
Applications include:
They can be integrated with sensors and PLC controls to coordinate movement with the production line.
Inspection machines often require controlled movement of products, sensors, or inspection fixtures.
An electric linear cylinder can position:
Multiple preset positions can be programmed when different inspection positions are required.
Packaging machines often contain multiple linear movement mechanisms.
Electric cylinders can be used for:
The appropriate actuator should be selected according to the required force, stroke, speed, and cycle time.
Electric cylinders can work with conveyor systems to perform controlled product handling.
For example:
Conveyor → Electric Cylinder → Product Transfer → Processing Station
The actuator can push a product from one position to another or control a mechanical stop.
This can be particularly useful when the conveyor and processing equipment operate at different positions or cycle times.
For OEM customers, standard dimensions may not always fit the machine.
A custom electric cylinder can be designed around the application.
Customization may include:
According to the required movement distance.
According to the pushing, pulling, lifting, or pressing requirement.
According to the machine's cycle time.
Possible configurations can include:
The mounting interface can be adapted to the customer's machine structure.
Depending on the control requirements, the actuator may be configured with position or limit sensing.
Before selecting an electric linear cylinder supplier, engineers should define the following parameters.
How far does the actuator need to move?
What is the maximum pushing, pulling, lifting, or pressing force?
How quickly must the cylinder extend and retract?
How many cycles will the cylinder perform per minute or hour?
Is the actuator installed:
Does the cylinder need simple end-position control or multiple programmable positions?
Consider:
Determine whether the system needs:
Electric cylinders can also be integrated into multi-axis systems.
For example:
X-Axis Linear Module + Y-Axis Linear Module + Z-Axis Electric Cylinder
The linear modules can provide horizontal positioning while the electric cylinder provides vertical movement.
This hybrid configuration can be useful for:
Using different actuator technologies for different axes can allow engineers to optimize each axis according to its actual motion requirements.
For specialized equipment, the electric cylinder should be considered as part of the complete machine rather than as an isolated component.
The system may include:
Electric Cylinder + Motor + Controller + Sensor + PLC + Mechanical Fixture
The actuator should be matched to the mechanical load and control architecture.
For OEM customers, this can simplify integration and help ensure that the actuator meets the machine's actual operating conditions.
When selecting an electric linear actuator manufacturer, OEM customers should look beyond basic product specifications.
A capable supplier should be able to support:
For custom automation projects, engineering support can be just as important as the actuator itself.
To obtain a suitable custom electric linear cylinder, provide:
This information helps the manufacturer evaluate the actuator according to the complete application.
Electric linear cylinders can be used in:
An Electric Linear Cylinder is a flexible electromechanical solution for machines that require controlled linear movement.
Its key features include programmable motion, adjustable speed, controlled thrust, customizable stroke, positioning capability, compact installation, and compatibility with modern automation controls.
Electric linear cylinders can be used for assembly, pick and place, lifting, pressing, clamping, inspection, packaging, material handling, and conveyor transfer.
For OEM customers, customization is often the most important consideration. The actuator can be configured according to stroke, force, speed, motor, mounting method, sensor configuration, positioning requirements, and working environment.
Rather than selecting an actuator only by its maximum specifications, machine builders should evaluate the complete application, including payload, duty cycle, acceleration, mounting orientation, and required cycle time.
A properly selected custom electric linear cylinder can become a reliable motion component within a larger automated production system.
