Electric Screw Cylinder: Features and Applications for Custom Automation

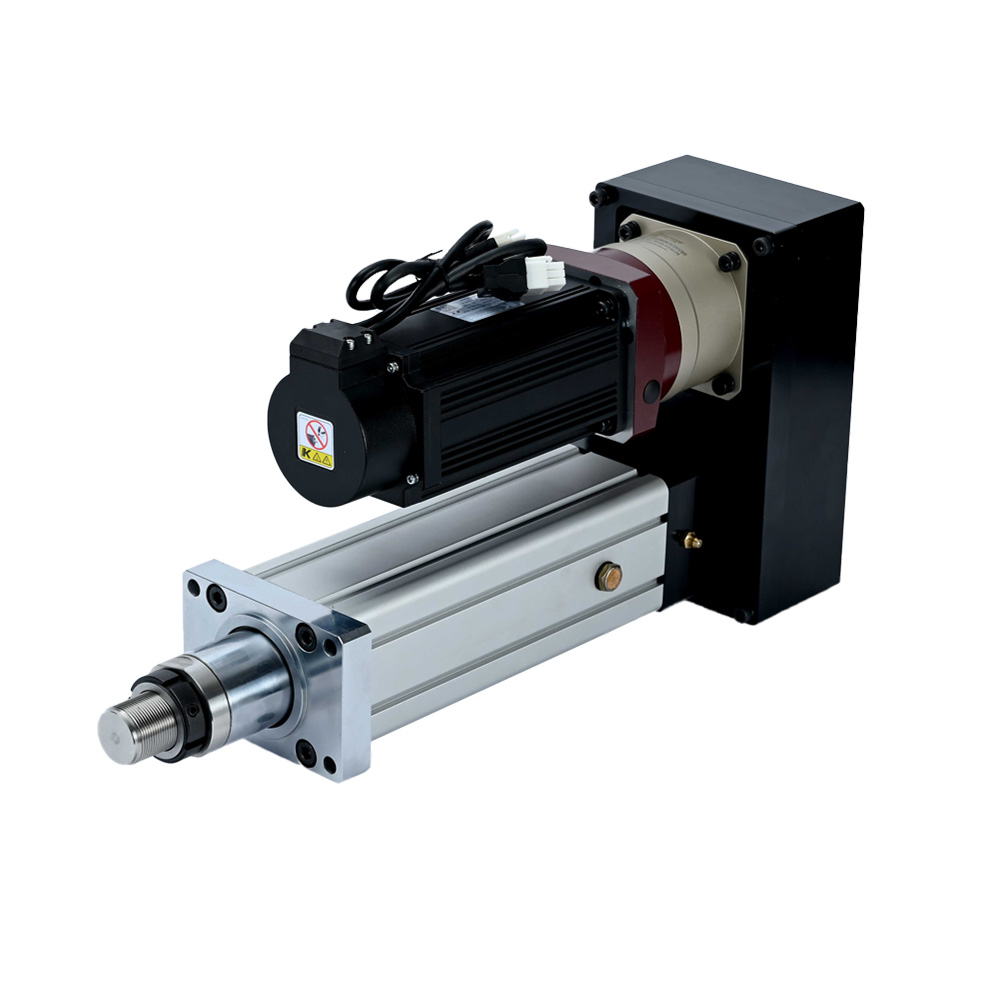

An electric screw cylinder is an electromechanical actuator that converts the rotational motion of a motor into controlled linear movement through a screw transmission mechanism. It is commonly used for pushing, pulling, lifting, pressing, positioning, and other linear motion tasks in industrial automation.
Unlike a pneumatic cylinder, which uses compressed air to generate movement, an electric screw cylinder uses an electric motor and a screw drive to control the actuator's movement. Depending on the design, it can support adjustable stroke lengths, programmable motion profiles, and integration with automated control systems.
Electric screw cylinders are available in different configurations, including ball screw-driven and lead screw-driven designs. The appropriate type depends on the required thrust, speed, positioning performance, duty cycle, and operating environment.
For OEM equipment manufacturers, a custom electric screw cylinder can be designed around the machine's installation space, load requirements, travel distance, motor specifications, and control system.
Electric screw cylinders provide controlled linear movement for applications that require repeatable positioning or a defined motion sequence.
When combined with a suitable motor, feedback device, and motion controller, an electric screw cylinder can move to specified positions, adjust speed, and coordinate with other machine axes.
The achievable positioning accuracy and repeatability depend on the screw type, mechanical tolerances, motor and feedback configuration, mounting rigidity, and applied load.
This makes electric screw cylinders suitable for automated assembly, inspection equipment, positioning fixtures, and other applications that require controlled movement.
Different machines have different space limitations and travel requirements. A standard actuator may not fit the available installation space or provide the required stroke.
Custom electric screw cylinders can be specified according to the application, including:
Custom stroke length and overall dimensions
Different mounting styles and connection interfaces
Customized front-end rods and load connections
Motor orientation and mounting configuration
Integration with linear guides or supporting structures
Special protection or environmental requirements, where available
For OEM projects, confirming the effective stroke, installation length, and mounting dimensions early can reduce mechanical redesign during equipment development.
The screw mechanism is a key factor in determining an electric cylinder's performance.
|
Screw type |
Main characteristics |
Typical applications |
|---|---|---|
|
Ball screw |
Rolling contact, generally high mechanical efficiency, suitable for demanding motion and frequent operation |
Precision positioning, automated assembly, machine loading |
|
Lead screw |
Sliding contact, often offers a compact and economical design; performance depends on screw material and geometry |
Light-duty positioning, adjustment mechanisms, intermittent movement |
Ball screw designs are often preferred when higher efficiency, speed, or positioning performance is required. Lead screw designs may be suitable for applications where cost, compact dimensions, or simpler movement requirements are priorities.
The final selection should consider thrust, speed, stroke, service life, lubrication, and duty cycle rather than screw type alone.
When driven by a compatible servo or stepper motor system, an electric screw cylinder can support controlled acceleration, deceleration, speed adjustment, and positioning sequences.
This flexibility is useful for machines that handle different workpieces or perform several operations in one cycle.
For example, an actuator may approach a workpiece quickly, slow down before contact, perform a pressing or positioning operation, and then return to its starting position.
The actual motion functions depend on the motor, controller, feedback system, and actuator configuration.
Electric screw cylinders can generate linear thrust for pushing, clamping, lifting, and pressing applications. Their suitability depends on the screw mechanism, motor torque, transmission ratio, stroke, and structural strength.
In pressing applications, the system may also require force feedback or an external force sensor if the process must control or monitor the applied force.
When specifying a custom actuator, customers should provide both the required force and the movement conditions. Peak thrust, continuous thrust, operating speed, and duty cycle can affect the selection of the motor and screw mechanism.
Electric screw cylinders can be integrated into automated machines through suitable motor drives, PLCs, motion controllers, sensors, and communication interfaces.
Depending on the application, customization may include:
Servo motor or stepper motor integration
Home and limit sensors
Position feedback
Customized mounting and mechanical connections
Coordination with conveyors, linear modules, or robotic systems
Planning these interfaces in advance helps simplify machine assembly and commissioning.
Electric screw cylinders and pneumatic cylinders can both provide linear movement, but they use different drive methods and offer different control capabilities.
|
Comparison |
Electric screw cylinder |
Pneumatic cylinder |
|---|---|---|
|
Power source |
Electric motor |
Compressed air |
|
Position control |
Programmable with a suitable control system |
Basic systems commonly use end positions; intermediate positioning requires additional equipment |
|
Speed control |
Adjustable through motor and controller settings |
Controlled through airflow and pneumatic components |
|
Force or thrust control |
Depends on motor, screw mechanism, and control configuration |
Depends on air pressure, piston area, and pneumatic circuit |
|
System requirements |
Electrical drive and control equipment |
Air supply, valves, tubing, and related components |
|
Typical applications |
Programmable positioning, controlled pressing, automated adjustment |
Simple pushing, clamping, and repetitive end-to-end movement |
Electric screw cylinders are worth considering when the machine needs flexible positioning, adjustable motion profiles, or integration with digital control systems. Pneumatic cylinders may remain a practical choice for simple movements where compressed air is already available.
The best option depends on the application, operating cost, required control, and maintenance conditions.
Electric screw cylinders are used in many industries where powered linear movement is required.
4.1 Automated Assembly Equipment
Electric screw cylinders can push components into fixtures, position workpieces, operate mechanical stops, and support repeatable assembly sequences. Custom stroke lengths and mounting interfaces help match the actuator to the machine layout.
4.2 Lifting and Height Adjustment
In lifting platforms, adjustment mechanisms, and production equipment, electric screw cylinders can move loads vertically or change the height of a working component. Vertical applications require careful consideration of load support, braking, and protection against unintended movement.
4.3 Pressing and Clamping Systems
Electric screw cylinders can provide controlled movement for pressing, clamping, and fixture actuation. Where process force must be measured or regulated, the system may need a suitable force sensor and closed-loop control.
4.4 Pick-and-Place and Material Handling
Electric screw cylinders can extend or retract grippers, transfer components, and position tooling within automated handling equipment. The actuator should be selected according to the payload, cycle time, stroke, and required positioning performance.
4.5 Inspection and Testing Equipment
In testing systems, an electric screw cylinder can move a sensor, probe, fixture, or workpiece into a defined position. Programmable movement can support different test positions and product configurations.
4.6 Packaging and Production Lines
Electric screw cylinders can operate guides, pushers, adjustment mechanisms, and other moving components in packaging machinery. Custom dimensions and control interfaces can help integrate the actuator into existing production equipment.
For OEM manufacturers and automation system integrators, selecting an electric screw cylinder requires matching the actuator to the machine's complete motion requirements.
A customized solution can help address special installation dimensions, non-standard strokes, specific motor requirements, and integration with other motion components.
Important customization parameters include:
Stroke length: The required effective travel distance.
Thrust requirement: The force needed during pushing, lifting, or pressing.
Speed and cycle time: Target movement speed, acceleration, and operating frequency.
Screw mechanism: Ball screw or lead screw according to the application.
Motor configuration: Servo motor, stepper motor, or another compatible drive.
Positioning requirements: Required accuracy, repeatability, and feedback method.
Mounting configuration: Flange, clevis, trunnion, or other suitable interfaces, depending on product design.
Operating environment: Temperature, dust, moisture, and other relevant conditions.
Duty cycle and service life: Expected operating hours and movement frequency.
Control integration: PLC, motion controller, sensors, and communication requirements.
Providing these specifications allows the manufacturer to assess the required actuator size, screw lead, motor capacity, and mechanical configuration.
Before choosing an electric screw cylinder for a custom machine, evaluate the following points.
Step 1: Define the load and thrust. Calculate the workpiece weight, external resistance, friction, and any additional forces. For vertical movement, consider gravity and load-holding requirements.
Step 2: Confirm the stroke and installation space. Specify the effective travel distance and available mounting dimensions, including the space needed for the motor and connections.
Step 3: Determine speed and duty cycle. A high operating frequency or demanding acceleration profile can affect motor sizing, screw life, and thermal performance.
Step 4: Establish positioning requirements. Determine whether the application needs simple end-to-end movement, repeatable intermediate positioning, or feedback-based control.
Step 5: Select the screw and motor. Compare ball screw and lead screw options, then select a compatible motor and drive system.
Step 6: Check mechanical safety and integration. Review mounting strength, side loads, guiding requirements, limit protection, and load-holding arrangements.
Step 7: Confirm customization and technical support. Ask the supplier to review drawings, application conditions, and control requirements before finalizing the specification.
This process helps avoid selecting an actuator based only on nominal thrust or stroke length while overlooking actual operating conditions.
A custom electric screw cylinder manufacturer should be able to evaluate application requirements and recommend a suitable combination of screw mechanism, motor, stroke, mounting interface, and control configuration.
For equipment builders, useful supplier capabilities include:
Engineering evaluation based on application parameters
Custom stroke and installation dimensions
Appropriate screw and motor selection
Technical drawings for mechanical integration
Coordination with other linear motion components
Support for OEM equipment development
KNK Technology provides linear motion products and customized solutions for industrial automation. Customers developing automated machinery can explore KNK's linear motion product range and discuss their specific movement requirements with the engineering team.
When requesting a quotation, provide the required thrust, stroke, speed, duty cycle, positioning requirements, and installation drawings whenever possible.
